IMTC

IMTC trolley jack

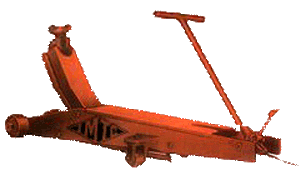

Hydraulic trolley jack - std. series
	Capacity	Close height	Open height	Length of chassis
	2.5 MT	138 mm	375 mm	650 mm
	3 MT	163 mm	413 mm	713 mm
	3.5 MT	163 mm	413 mm	713 mm
Hydraulic trolley jack - long series
	Capacity	Close height	Open height	Length of chassis
	2.5/3 MT	140 mm	490 mm	1455 mm
	5 MT	180 mm	500 mm	1580 mm
	5 MT - LR	200 mm	600 mm	1700 mm
	10 MT	200 mm	600 mm	1700 mm
	15 MT	200 mm	600 mm	1700 mm
	20 MT	200 mm	600 mm	1700 mm
Gear box jack
	Capacity	Close height	Extension height
	1 ton	80 mm	600 mm
	Standard: 10 mm, 12 mm, 14 mm, 16 mm and 20 mm
	Heavy duty: 16 mm and 25 mm
